Application:         Dual Monolithic Common Cathode Bipolar Zener diodes KS535 (microcircuit) are intended for formation of a two-polar pulse basic voltage. The devices can be applied as pair of Zener diodes with common cathode or as symmetric Zener diode. The devices are well combined with Silicon Bidirectional Switch (SBS) KU503   and allow to simplify the circuits for Thyristors and Triacs control. Vz - 8, 15, 21, 28, 35V   C<15pF

Constructive variants

Symbol Case SOT-23 KS535*-9 Case TO-92 KS535 1-A1, 2-K, 3-A2 1-K, 2-A2, 3-A1

Maximum Ratings (T_J= 25°C unless otherwise noted)

Ratings Symbol Value Unit DC Forward Carent single Zener diode (electrode A-K) Iz 100   Operating Junction Temperature Range TJ - 55 to +125 °C Power Dissipation KC535 KC535-9 PD   500 250 mW

Extreme allowable currents of stabilization single Zener diode (T=25°C)

Type KC535-1 KC535-2 KC535-3 KC535-4 KC535-5 Iz, mA 50 40 30 20 10 Type KC535-1-9 KC535-2-9 KC535-3-9 KC535-4-9 KC535-5-9 Iz, mA 25 20 15 10 5

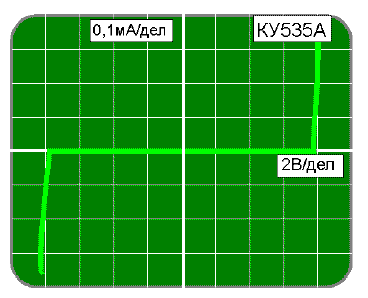

Electrical Characteristics single Zener diode (T=25°C)

Parameter Symbol Min Typ Max Unit ZenerVoltage  (Iz-1mA) KC535-1, KC535-1-9 KC535-2, KC535-2-9 KC535-3, KC535-3-9 KC535-4, KC535-4-9 KC535-5, KC535-5-9 Vz   7 13 18 26 33   8 15 21 29 36   9 17 24 32 39 V Reverse Current (Vr=0,7 Vz,min)       100 nA Capacity  (V= 0,7Vz, min , electrode A-A ) Cz     15 pF Type KC535-1 KC535-2 KC535-3 KC535-4 KC535-5 Rz, Ohms (Iz=10mA) 10 20 30 40 50 Type KC535-1-9 KC535-2-9 KC535-3-9 KC535-4-9 KC535-5-9 Rz, Ohms (Iz=5mA) 15 30 45 60 75 Type KC535-1 KC535-1-9 KC535-2 KC535-2-9 KC535-3 KC535-3-9 KC535-4 KC535-4-9 KC535-5 KC535-5-9   dVz/dT, (mV/°K) 2 0,3 2 4 6
